Smart Home KNX Package - Premium

Scope of delivery:

The "Premium" package is designed for up to 12 rooms and includes the following components and functions.

Controls/sensors:

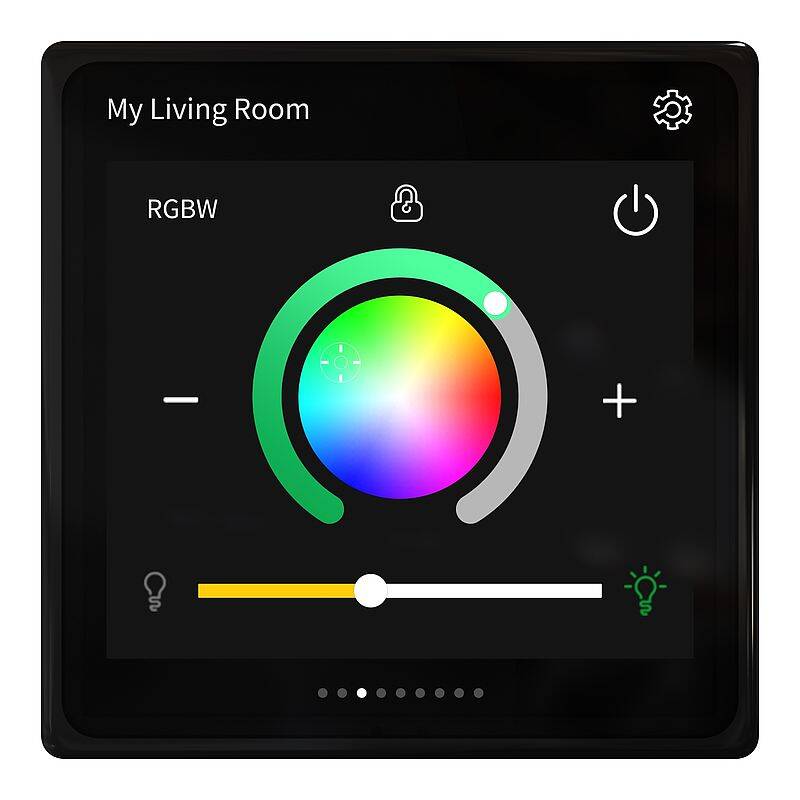

8x Schneider/Merten Touch Spacelogic 4"

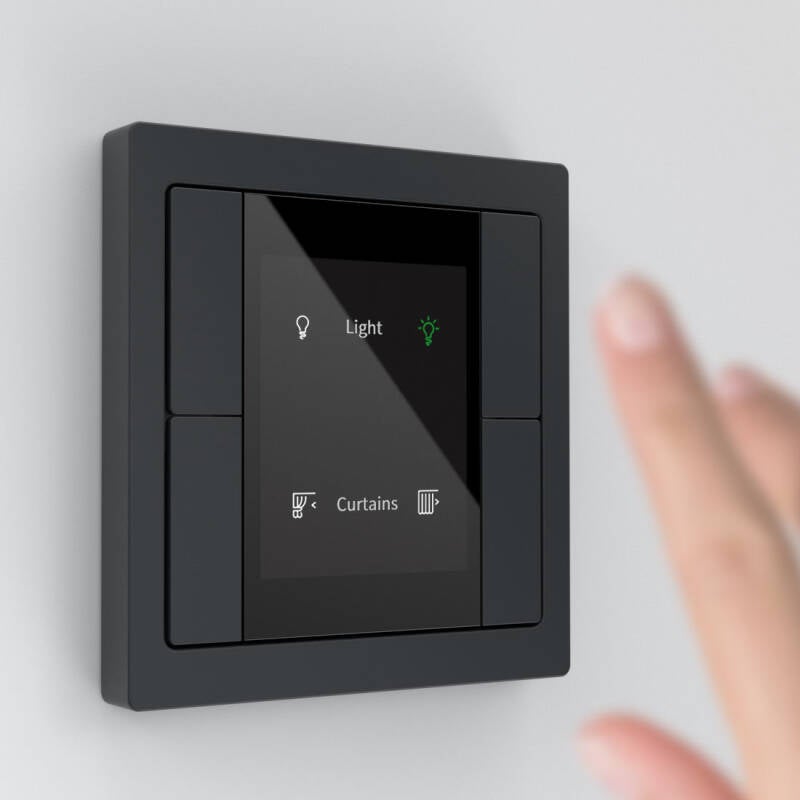

14x Schneider/Merten touch sensor flex
12x MDT Presence detector glass
32x binary input for window/door, contacts & alarms
1x MDT weather station
1x MDT rain sensor

The controls are available in matt white, glossy white or black and match the switch series of many manufacturers.
The partially integrated temperature sensors are used for heating control.

Important: For outdoor devices, the package includes all the necessary KNX system components to set up a second KNX line. This serves to protect against access to the KNX bus from the outside.

Actuators for:
24x switchable lighting/sockets
16x Roller shutters/blinds
12x heating control
64x DALI channels (e.g. dimmable or coloured lighting)

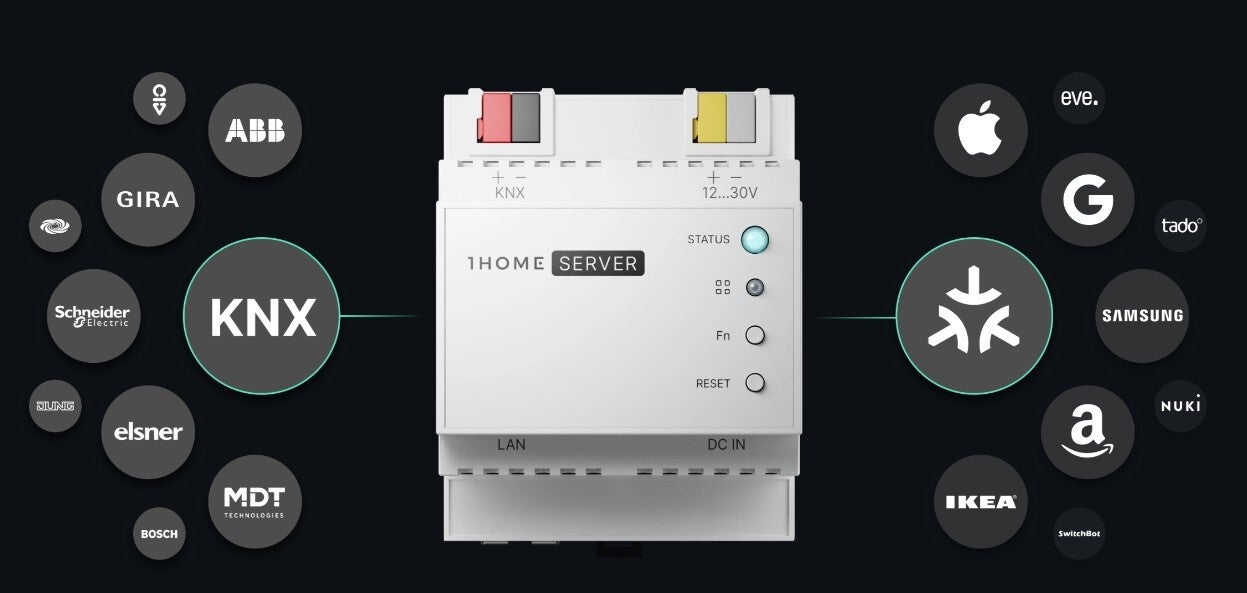

1x visualization and app control via MDT VisuControl Easy II or alternatively via 1Home Server with the possibility of voice control via Apple Home, Alexa or GoogleHome.

Option "w/o control cabinet":

The KNX components are delivered programmed and only need to be installed and wired on site.

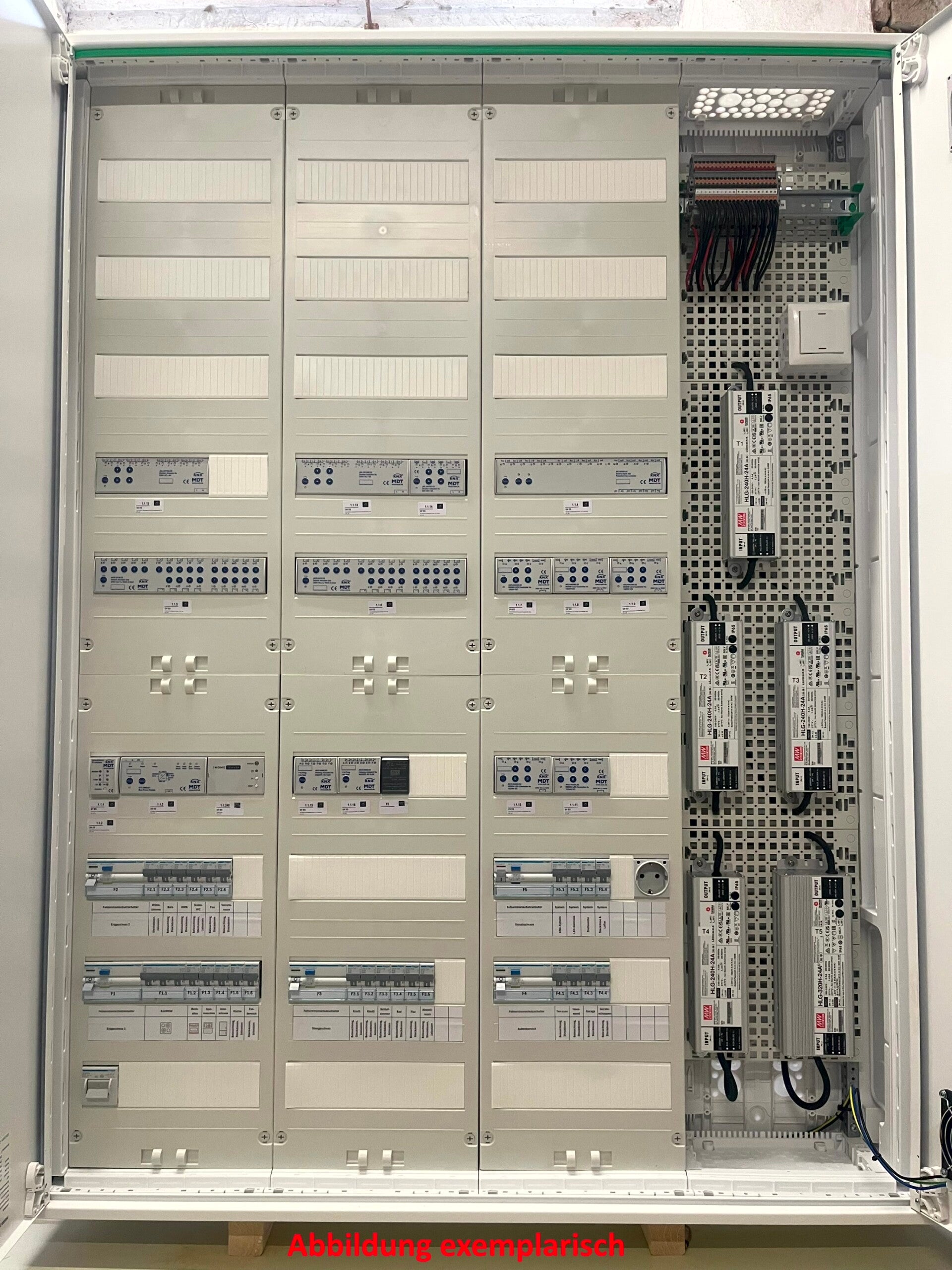

Option "w/ control cabinet":

1x fully wired control cabinet with KNX components, RCD and miniature circuit breakers (1 LSS per room plus electric stove, oven & dishwasher) All cables are placed on terminal blocks and the on-site installation only needs to be placed on top.

All necessary documents and project files are also included.

Procedure:

With the purchase of this product, you conclude a service contract with KNX Consulting. A complete smart home package is delivered, in the scope described above.

After the purchase, KNX Consulting will contact you to arrange a consultation. During this consultation, the exact specification is drawn up from your wishes and requirements, on the basis of which the implementation is carried out.

Delivery takes place approx. 6-8 weeks after the consultation.
