On this page we present a selection of complete packages. Discover our range of innovative smart home concepts that are sure to have something for you. The preconfigured packages offer a cost-effective solution at a fixed price, including detailed advice. Of course, solutions tailored to your individual needs are also possible on request. Our products are designed to make your home smarter, more energy-efficient, safer and more comfortable.
Smart Home KNX Package - Basic (2 Options)
The "Basic" package is designed for up to 12 rooms and includes the following components and functions.
Controls/sensors:
8x MDT pushbutton 55 plus 8-fold
6x MDT pushbutton 55 light 4-fold
7x MDT pushbutton 55 light 2-fold
2x MDT motion detectors
4x Binary inputs for contacts/alarms
The controls are available in matt white, glossy white or black and match the switch series of many manufacturers.
The partially integrated temperature sensors are used for heating control.
Actuators for:
24x switchable lighting/sockets
16x Roller shutters/blinds
12x heating control
1x visualization and app control via MDT VisuControl Easy II or alternatively via 1Home Server with the possibility of voice control via Apple Home, Alexa or GoogleHome.
Option "w/o control cabinet":
The KNX components are delivered programmed and only need to be installed and wired on site.
Option "w/ control cabinet":
1x fully wired control cabinet with KNX components, RCD and miniature circuit breakers (1 LSS per room plus electric stove, oven & dishwasher) All cables are placed on terminal blocks and the on-site installation only needs to be placed on top.
All necessary documents and project files are also included.
6.899 € - 7.999€
Smart Home KNX Package - Standard (2 Options)
he "Standard" package is designed for up to 12 rooms and includes the following components and functions.
Controls/sensors:

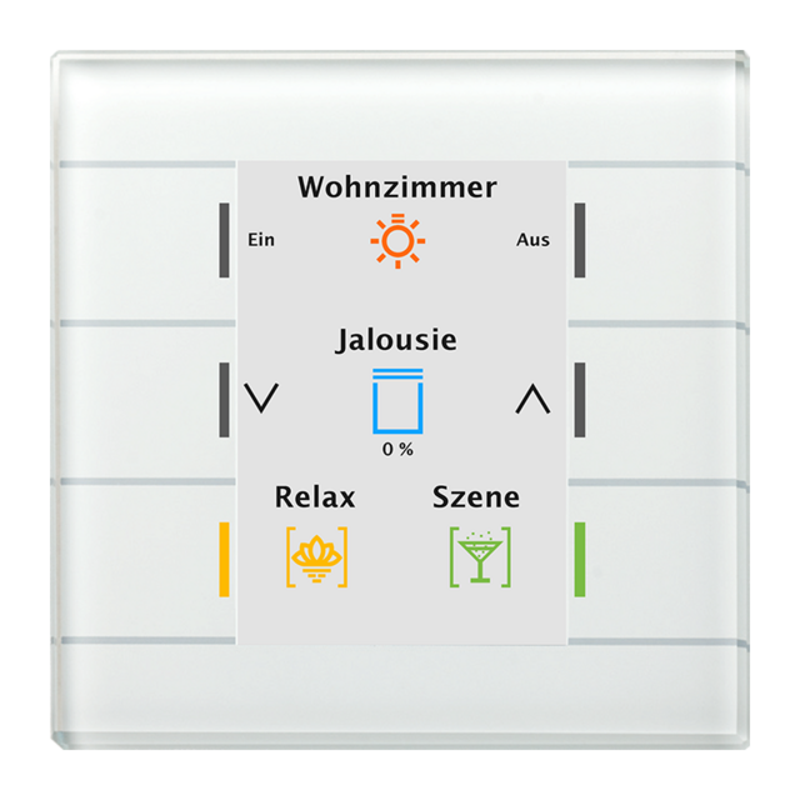

8x MDT Glass Pushbutton II Smart
7x MDT Pushbutton 55 light 4-fold
7x MDT Pushbutton 55 light 2-fold
2x MDT presence detector
32x binary input for window/door, contacts & alarms
1x MDT weather station
1x MDT rain sensor
The controls are available in matt white, glossy white or black and match the switch series of many manufacturers.
The partially integrated temperature sensors are used for heating control.
Important: For outdoor devices, the package includes all the necessary KNX system components to set up a second KNX line. This serves to protect against access to the KNX bus from the outside.
Actuators for:
24x switchable lighting/sockets
16x Roller shutters/blinds
12x heating control
64x DALI channels (e.g. dimmable or coloured lighting)
1x visualization and app control via MDT VisuControl Easy II or alternatively via 1Home Server with the possibility of voice control via Apple Home, Alexa or GoogleHome.
Option "w/o control cabinet":
The KNX components are delivered programmed and only need to be installed and wired on site.
Option "w/ control cabinet":
1x fully wired control cabinet with KNX components, RCD and miniature circuit breakers (1 LSS per room plus electric stove, oven & dishwasher) All cables are placed on terminal blocks and the on-site installation only needs to be placed on top.
All necessary documents and project files are also included.
9.999 € - 11.999€
Smart Home KNX Package - Premium (2 Options)
The "Premium" package is designed for up to 12 rooms and includes the following components and functions.
Controls/sensors:
8x Schneider/Merten Touch Spacelogic 4"
14x Schneider/Merten touch sensor flex
12x MDT Presence detector glass
32x binary input for window/door, contacts & alarms
1x MDT weather station
1x MDT rain sensor
The controls are available in matt white, glossy white or black and match the switch series of many manufacturers.
The partially integrated temperature sensors are used for heating control.
Important: For outdoor devices, the package includes all the necessary KNX system components to set up a second KNX line. This serves to protect against access to the KNX bus from the outside.
Actuators for:
24x switchable lighting/sockets
16x Roller shutters/blinds
12x heating control
64x DALI channels (e.g. dimmable or coloured lighting)
1x visualization and app control via MDT VisuControl Easy II or alternatively via 1Home Server with the possibility of voice control via Apple Home, Alexa or GoogleHome.
Option "w/o control cabinet":
The KNX components are delivered programmed and only need to be installed and wired on site.
Option "w/ control cabinet":
1x fully wired control cabinet with KNX components, RCD and miniature circuit breakers (1 LSS per room plus electric stove, oven & dishwasher) All cables are placed on terminal blocks and the on-site installation only needs to be placed on top.
All necessary documents and project files are also included.
